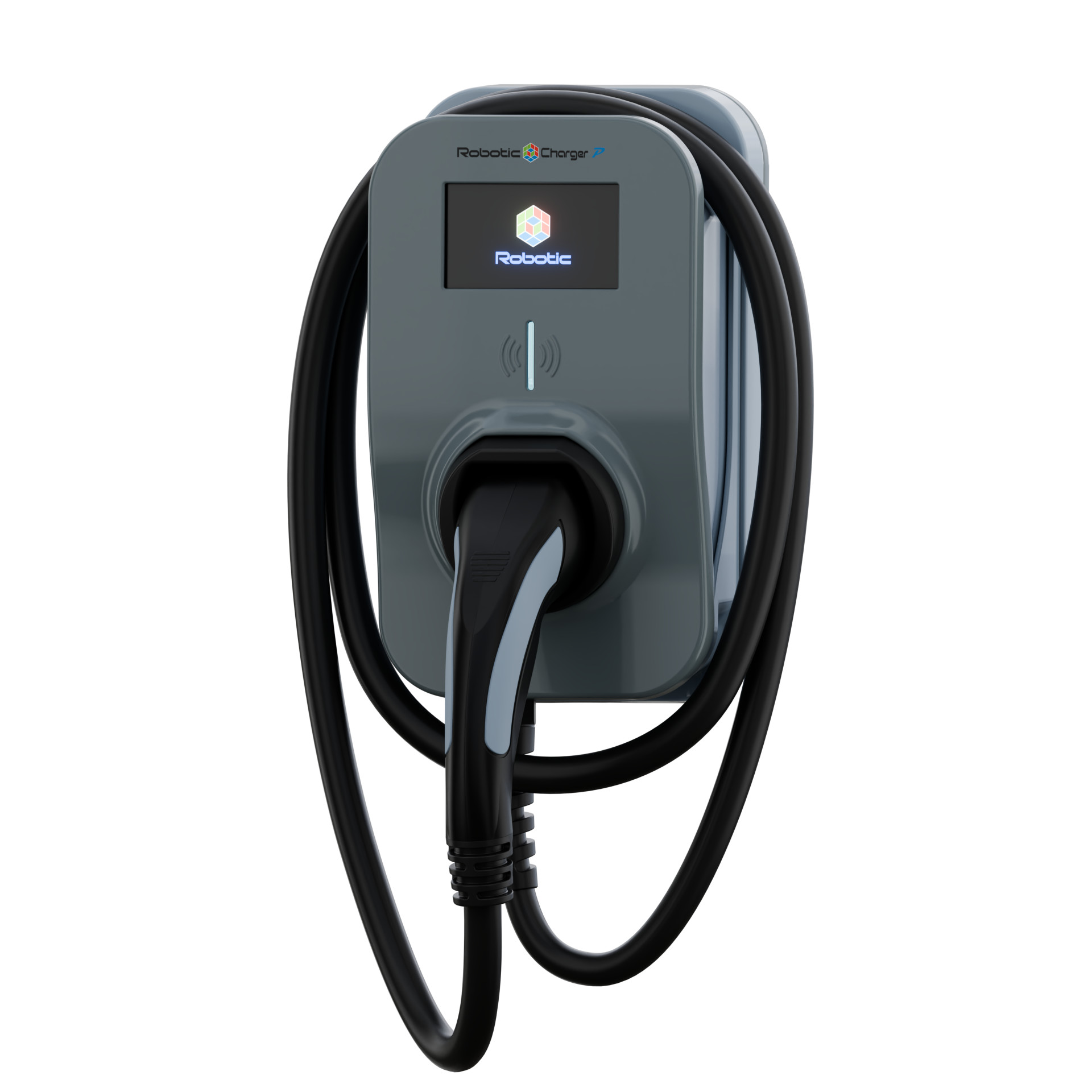

Robotic Charger P, Type 2 with plug
A better charging experience with the new Robotic Charger
Robotic Charger comes in a high-quality, compact and attractive housing with a modern design and belongs to the category of chargers with the smallest dimensions on the market.
Thanks to easy installation and simple use, it is ideal for home use. It can be mounted on a wall or a mounting post inside or outside the building.
| RFID card: Kom |
| Current transformer: Kom |
TECHNICAL SPECIFICATIONS
Electrical Properties
| Charging capacity (Single-Phase) | 7,4 kW (1W+N+PE) |
|---|---|
| Charging capacity (Three-Phase) | 11 / 22 kW (3W+N+PE) |
| Supply Voltage (Single-Phase) | 230 V AC (±10%) |
| Supply Voltage (Three-Phase) | 400 V AC (±10%) |
| Frequency | 47 Hz – 63 Hz |
| Rated Current (adjustable by user) | 6 - 32 A (22kW or 7,4kW) 6 - 16A (11kW) |
| Charging Socket/Plug Type | Tip 2 (IEC 62196-2) |
| Standby Energy Consumption | <4 W |
| Storage temperature | -40°C to +70°C |
| Operating Temperature | Single-Phase -25 °C ─ +45 °C @32A Three-Phase -25 °C ─ +40 °C @32A Three-Phase -25 °C ─ +45 °C @16A Up to 95 % relative humidity, non-condensing Maximum Altitude 2000 m |
| Charging type | Mode 3 |
| Protection | Overcurrent Protection Overvoltage Protection Undervoltage Protection Overheating Protection Ground Fault Protection Leakage Current Protection Type A (30mA) + DC 6mA Integrated Surge Protection Fire Resistance Class UL94-0 |
Connectivity
| Authorization | RFID, PIN, WEB- application |
|---|---|
| Communication Standard | WIFI 2.4 GHz 802.11 b/g/n |
| WiFi Frequency | 2412 – 2484 MHz (do 14 dBm) |
| RFID Frequency | 13.58 MHz (HF), (ISO-14443A), (do 8 dBm) |
Physical Properties
| Housing | Polycarbonate (UV resistant) |
|---|---|
| Front Panel | Polycarbonate (UV resistant) |
| Mounting Bracket | Polycarbonate (UV resistant) |
| Dimensions (L x W x H) | 135 x 327 x 193 |
| Mounting Method | Wall-mounted / Stand-mounted |
Installation Environment | Indoor / Outdoor |
| Color | Gray |
| Protection Class | IP66 (Wall housing), IP44 (socket and plug), IK 8 (impact protection) |
| Standards/Certification | IEC 61851-1, CE |
Additional Features:
- Integration with renewable energy systems
- Storage of charging data
- Status signaling using RGB LED
- Internet connection via WIFI or install inside the charger housing USB 4G WIFI Router (USB Router not include)
- Consumption optimization
- Dynamic load balancing
- Device with an electrical socket equipped with an electric lock
- Built-in MID energy metering, Speaker and RFID reader
- Over-the-air firmware / software updates
- You can postpone your charging, limit charging time and energy.
With Web browser "Robotic Charger", it's easy to keep track of your chargers remotely and view current charging status.
